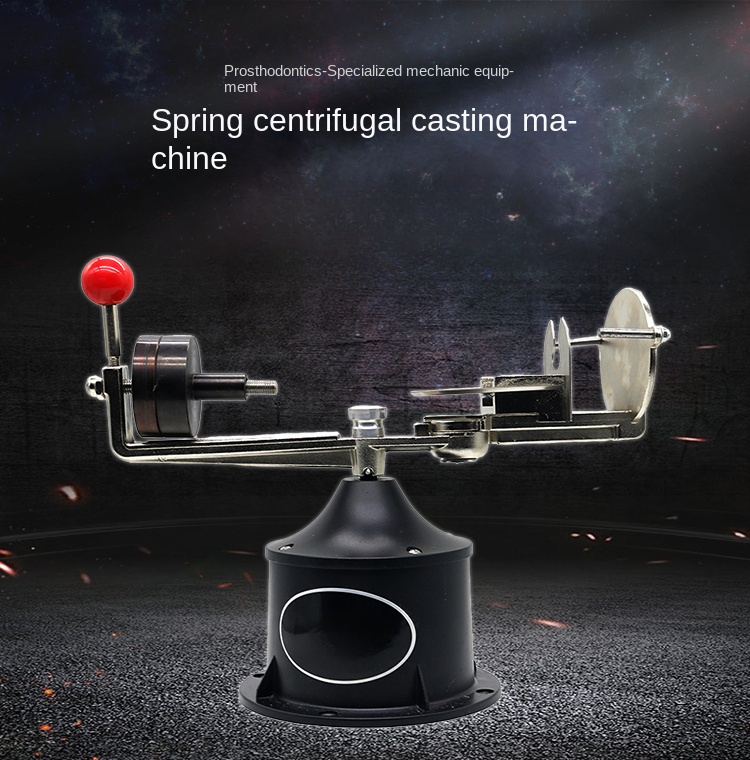

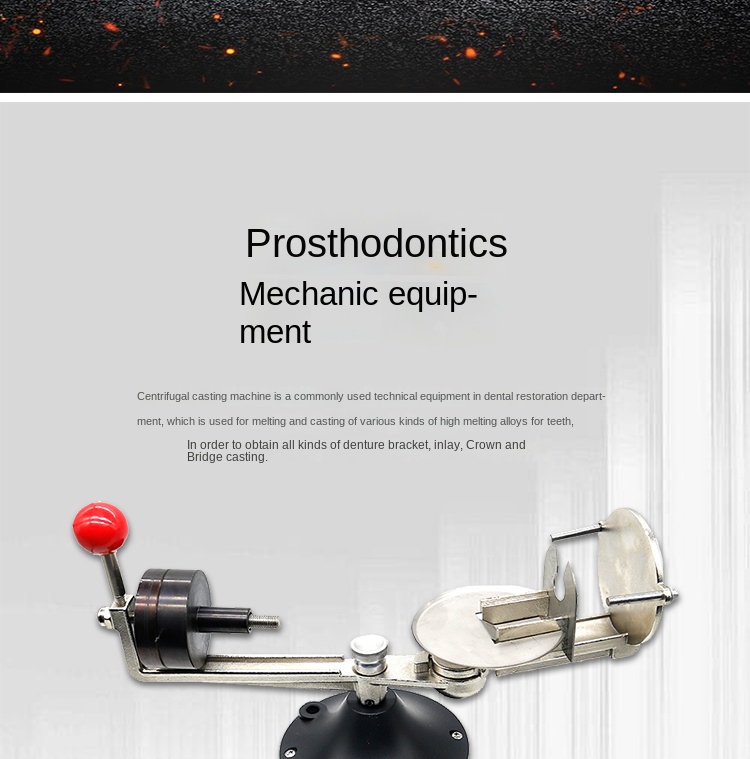

Centric casting machine is a common technical equipment for dental advancement. it is used for shopping and casting of various types of high-melting alloy for dental use to obtain castings as snacks, flowers and crown bridges.
Use:

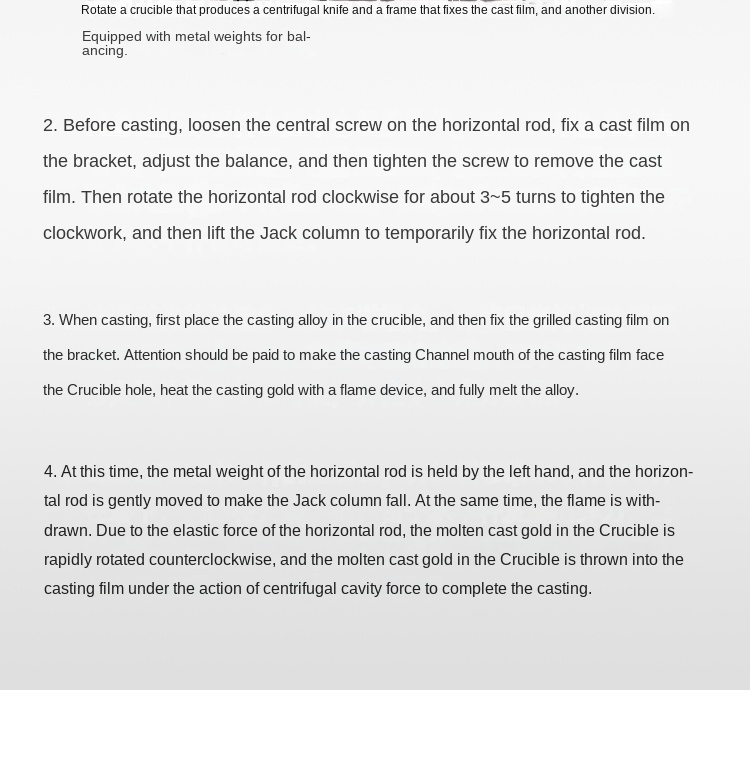

The centrifuge uses the elastic force of the metal spring, and the central shaft drive the horizontal rod to rotate to generate one end of the centric force and the cloth for fixing the cast film, and the other end is equal with a metal for balance. before casting, loosen the center screen on the horizontal rod, fix a cast film on the cloth, just the balance, then tighten the screen to remove the cast film. then turn the horizontal rod clockwise about 3 to 5 times to tighten the spring, then lift the jack to temptorily fix the horizontal rod.
When casting, the casting alloy is first placed in the crack, and then the baked casting film is fixed on the cloth. attention should be paid to the casting of the casting film, and the casting gold is made by the device with flame to make the alloy full melt. at this time, the metal hand of the horizontal rod is supported by the left hand, and the horizontal rod is willing to move to drop the jack, and the flame is approved. due to the elastic force of the horizontal rod spring, the counter wise direction is rapidly rotted, and the molten gold in the crucble is The casting is complete by breaking into the casting charity under the action of intensive force.
Note:
This product has a simple structure and contract operation. please pay attention to the following when using it:
1: Note that the table top is fixed and made, and the Crucible is placed.
2: the workbench must have protection devices to prepare the molten metal from splash out duration operation and harmony the human body.
3: When operating, pay attention to the insider of the spring power, and visit your hands.
4: Keep the equipment clean and dry. after the casting is completed, the equipment must be cleaned and the weight removed.
Size: 40*42*47cm
Weight:6KG
Weight:6KG
